V-SOL HG3110AX-XG

The HG3110AX 10G ONT uses the latest WiFi 6(AX3000) technology and is equipped with IEEE 802.3av(10G-EPON)/ITU-T G.987(XG-PON)/ITU-TG.9807 interface. .1(XGS-PON) PON interface and IEEE802.11ax(WiFi 6) interface V-SOL 10G PON HGU HG3110AX supports complete Triple Play services, enabling data, voice and video services through standard Ethernet, Wi-Fi, FXS and USB interfaces, helping ISPs to provide internet services at speeds above 2.5Gb/ s which is limited by GPON. The HG3110AX has built-in Ethernet LAN ports, one 2.5GE BASE-T port and 3 1GE BASE-T ports supporting ultra-fast device connection, and features a powerful and improved WLAN interface based on MU-MIMO OFDMA 2x2 2.4GHz MIMO and 5Ghz 2x2 MIMO Wi -Fi antennas supporting 802. 11a/b/g/n/ac/ax in 2.4GHz and 5GHz wireless frequency bands for Internet applications such as video, email, web surfing, file uploading/downloading and online gaming, and provides VoIP service through the POTS port.



Specification

Inface PON

10G PON port: Class B+

SC single mode, SC/UPC connector TX optical power: 6dBm (XGS-PON), 4dBm (XG-PON), 3.5dBm (10G EPON) RX sensitivity: -29.5dBm

Optical power at overload: -7dBm

Transmission distance: 20 km

Wavelength: 10G EPON: DS 1577nm/US 1310nm XG(S)-PON: DS 1577nm/US 1270nm Layer 10G PON IEEE 802.3av(10G-EPON) ITU-T G.987(XG-PON) ITU-T G.9807.1 (XGS-PON)

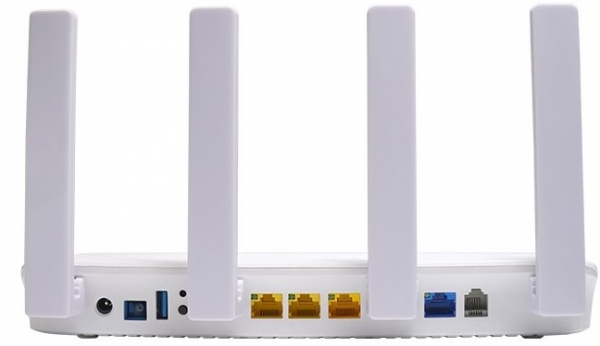

User interface 1*2.5GE RJ45 port 3*GE RJ45 port 1*POTS, RJ11 connector 1*USB3.0

Antenna 2*4dBi (2.4GHz) 2*5dBi(5GHz) e

xternal antennas

USB 1×USB 3.0 for shared storage/printer

Dimensions: 244mm*131mm*36mm (L*W*H)

Net weight: 425 g





Code: PONVHG3110AX-XG

Producer: V-SOL

Warranty: 12 months

In stock: 0 ks

Reservation: 0 ks

Available to 14 days

Price:

72,22
RP: 0.1 €
86,78 € (with VAT)

ks

1 - 39 ks 72,22 €
40 - 99 ks 69,97 €
100 a viac ks 67,71 €
Files to download
Datasheet Download - Datasheet
